تفاصيل المنتج:
|
| اسم المنتج: | أنابيب فولاذية من سبائك النيكل | مادة: | إنكونيل 600 |
|---|---|---|---|
| التطوير التنظيمي: | 2'' | وزن: | SCH60 |
| تقنية: | سلس | موك: | 1 قطعة |

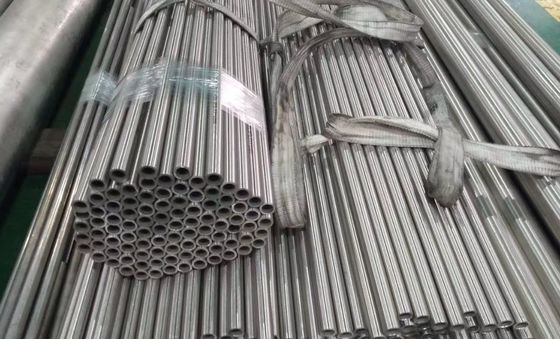

Inconel 600 Nickel Alloy Pipe Seamless 2 '' Size SCH 60 ASME36.19M
Specifications
1. Nickel Alloy Steel Pipe
2. sch5s-schxxs
3. ISO9001,ISO9000
4. Market:America,Africa,Middle East,Southeast of Asia
| Production Name | Nickel Alloy Steel Pipes |
| Standard | ASME/ANSI B16.9, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC. |
| Size | 1/2’’~48’’(Seamless);16’’~72’’(Welded) |
| Wall thickness | Sch5~Sch160XXS |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Nickel alloy steel |
Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN; |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FOB Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
| The third party inspection: | BV,SGS,LOIYD,TUV,and other party alloyed by clients. |
| Trade Name | ASTM Pipe | Pipe Fittings | UNS | Forging & Flanges |
| Monel@ 400 | B165 | B366 WPNC | N04400 | B564 N04400 |
| Inconel@ 600 | B167 | B366 WPNCI | N06600 | B564 N06600 |
| Inconel@ 625 | B444 | B366 WPNCMC | N06625 | B564 N06625 |
| Incoloy@ 800 | B163 | B366 WPNIC | N08800 | B564 N08800 |
| Incoloy@ 800H | B407 | B366 WPNIC10 | N08810 | B564 N08810 |
| Incoloy@ 800HT | B407 | B366 WPNIC11 | N08811 | B564 N08811 |
| Incoloy@ 825 | B423 | B366 WPNICMC | N08825 | B564 N08825 |
| Hastelloy@ B2 | B619/622 | B366 WPHB-2 | N10665 | B564 N10665 |
| Hastelloy@ C276 | B619/622 | B366 WPHC276 | N10276 | B564 N10276 |
| Hastelloy@ C22 | B619/622 | B366 WPHC22 | N06022 | B564 N06022 |
| Carpenter 20Cb-3@ | B729 | B366 WP20Cb | N08820 | B462 N08820 |
| SANICRO 28@ | B668 | N08028 |
STANDARDS:
ASTM B366 - ASME SB366 - Factory-Made Wrought Nickel and Nickel Alloy Fittings
ASTM A815-Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings
ASTM A403-Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A234-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service
ASTM A420-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service
ASME B16.28 - Wrought Steel Buttwelding Short Radius Elbows and Returns
ASME B16.25 - Buttwelding Ends
MSS SP-43 - Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Chemical Composition
Nickel (plus cobalt) ......................................................99.0 min.
Copper........................................................................0.25 max.
Iron..............................................................................0.40 max.
Manganese .................................................................0.35 max.
Carbon........................................................................0.15 max.
Silicon .........................................................................0.35 max.
Sulfur ..........................................................................0.01 max
Packaging & Shipping
| Packaging: | In wooded cases , pallets or according to clients' requirements |
| Shipping: | Tianjin port, Shanghai port and the other main ports in China |
