تفاصيل المنتج:
|
| قياسي أو غير قياسي: | المعيار | اسم المنتج: | لحام العنق شفة |
|---|---|---|---|
| نوع المنتج: | شفة مزورة | درجة المواد: | القاعدة الدولية S32900 |
| ضوء مرتفع: | 3000# 12" الوزن الثقيل الفولاذ المقاوم للصدأ أرضية شراع 316 الفولاذ ASME B16.5 | النوع: | الاتصال |
| إبراز: | ASTM A182 2 بوصة الأنبوب فلانج,2205 2 بوصة أنبوب فلانج,304 316L 2 بوصة أنابيب فلنج,2205 2 inch pipe Flange,304 316L 2 inch pipe Flange |
||
| Product Name | Carbon steel / Stainless steel / Alloy Flanges |
| Standard | ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Type | WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer) Special Flange: According to the drawing Picture |
| Materials |
Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675 Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70.... |
| Dimension | (150#,300#,600#): DN15-DN1500 900# : DN15-DN1000 1500#: DN15-DN600 2500#:D N15-DN300 |
| Marking | Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement |
| Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment |
| Brand | TOBO |
| Certificates | API, ISO, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
| Advantages |
1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.) |
Description:

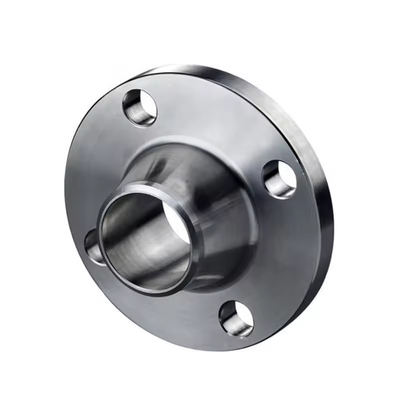

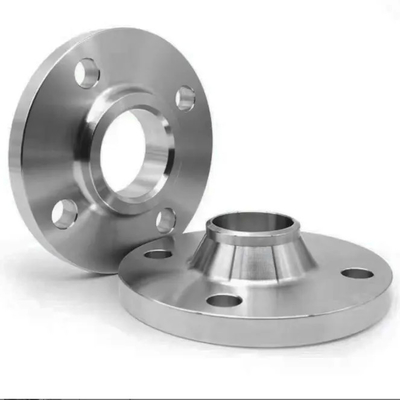

Weld Neck Flanges
Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.
We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.
Product Range:
WNRF Flanges Size : 1/8" NB TO 48"NB.
WNRF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# , 2500 #, 3000#
Stainless Steel WNRF Flanges: ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181
Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal
Incoloy Alloy Steel Flange : ASTM AB564 ,NO8800/ Alloy800, NO8810/ Alloy 800H, NO8811/Alloy 800HT
Hastelloy Steel Flange: ASTM AB564 , C276/ NO10276 , Monel Alloy 400 /NO4400, K500/NO5500,
WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Value Added Services
Test Certificate
Manufacturer Test Certificate as per EN 10204 / 3.1B
